USB 3.0 Connectivity and Active Cooling System The Winning Combination for Our Fiber Optic Spectrometer

Brand Name : JINSP

Model Number : SR100Z

Certification : ISO9001 CE

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100PCS/30-40 days

Delivery Time : 30-400 working days

Packaging Details : International Shipping Package

Spectrual Range : 200nm - 1100nm

Effective pixels : 2048*64

Pixel Size : 28.672*0.896mm

Fiber Interface : SMA905, free space

Numerical Aperture : 0.13

Focal Length : 100mm

Dimensions : 180mm*120mm*50mm

Weight : 1.2kg

Contact Now

UV-VIS 200nm-1100nm Wide Wavelength Range Fiber Optic Spectrometer

Engineered for the photon-starved: SR100Z detects what others miss. Its cooled CCD captures 2x more signal than conventional sensors, crucial for time-resolved fluorescence and low-concentration Raman detection. The 14μm pixel size strikes the ideal balance between resolution and light throughput.

Beyond hardware, intelligent firmware features include real-time baseline correction and adaptive integration control. Compatible with all major spectroscopy software, it's the seamless upgrade path for labs seeking industrial-grade reliability in a compact footprint.

Product Parameters:

Detector

Chip Type

Back-illuminated TE-cooling Hamamatsu S11850

Effective Pixel

2048*64

Pixel Size

14*14μm

Sensing Area

28.672*0.896mm

Optical
Parameters

Optical Design

F/4 cross type

Numerical Aperture

0.13

Focal Length

100mm

Entrance Slit Width

10μm, 25μm, 50μm, 100μm, 200μm (customizable)

Fiber Interface

SMA905, free space

Electrical
Parameters

Integration Time

4ms~900s

Data Output Interface

USB3.0, RS232, RS485, 20pin connector

ADC Bit Depth

16-bit

Power Supply

5V

Operating Current

<3.5A

Physical
Parameters

Operating Temperature

10°C ~ 40°C

Storage Temperature

-20°C ~ 60°C

Operating Humidity

<90%RH (no condensation)

Dimensions

180mm*120mm*50mm

Weight

1.2kg

List of Product Models:

Model

Spectral Range( nm)

Resolution( nm)

Slit(μm)

SR100Z-G21

200~1100

2.2nm

50μm

1.5nm

25μm

1.0nm

10μm

SR100Z-G23
SR100Z-G24

200~875

350~1025

1.6nm

50μm

1.0nm

25μm

0.7nm

10μm

SR100Z-G28

200~345

0.35nm

50μm

0.2nm

25μm

0.14nm

10μm

SR100Z-G25

532~720(4900cm-1*)*

13cm-1

50μm

SR100Z-G26

638~830(3200cm-1)*

10cm-1

25μm

SR100Z-G27

785~1080(3200cm-1)*

11cm-1

50μm

Note:The*are primarily designed for Raman applications, with the corresponding Raman.

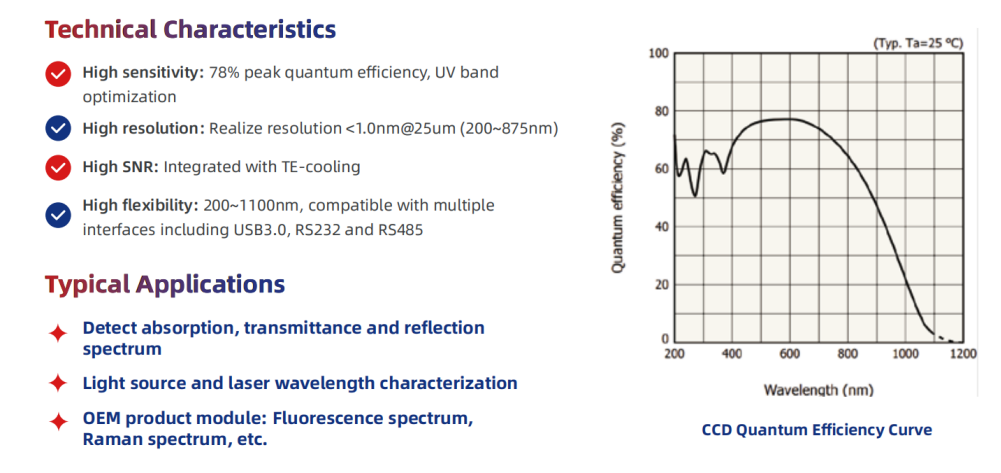

Technical Characteristics:

  • High sensitivity: 78% peak quantum efficiency, UV band optimization
  • High resolution: Realize resolution <1.0nm@25um (200~875nm)
  • High flexibility: 200nm~1100nm, compatible with multiple interfaces including USB3.0, RS232 and RS485

Typical Applications:

  • Detect absorption, transmittance and reflection Spectrum
  • OEM product module: Fluorescence spectrum, Raman spectrum,etc.

USB 3.0 Connectivity and Active Cooling System The Winning Combination for Our Fiber Optic Spectrometer

Company Introduction:

JINSP Company Limited, abbreviated as "JINSP", is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies, etc. After 17 years of technology accumulation, the company’s core key technologies have reached the international leading position at the level, and the cumulative number of patent applications exceeded 200.

In addition to its main headquarters located in the bustling city of Beijing, JINSP has established a fully owned subsidiary manufacturing facility situated in the province of Jiangsu, China.

JINSP Company received ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications. JINSP can provide required certifications, such as certification by the Ministry of Public Security or National Institute of Metrology, Environmental Level Certification, IP Level Certification, CE Certification, Transport Identification Report, EU ECAC certification, German ICT Security Testing, etc.

USB 3.0 Connectivity and Active Cooling System The Winning Combination for Our Fiber Optic SpectrometerUSB 3.0 Connectivity and Active Cooling System The Winning Combination for Our Fiber Optic SpectrometerUSB 3.0 Connectivity and Active Cooling System The Winning Combination for Our Fiber Optic Spectrometer

FAQ

Q1:This is the first time I use,is it easy to operate?

A1:We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.Also our technicians will offer professional tecnical opearation meetings.

Q2:Can your offer a operation traning?
A2:Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support
( installation , training, debugging, maintenance ).

Q3:What's your website?
A3:You can visit:www.jinsptech.com

Q4:What about your quality assurance?

A4:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
